| Tempat asal: | Cina |
|---|---|
| Nama merek: | NTH |
| Sertifikasi: | CE |
| Nomor model: | MQL-225-350,HQ-400-MQL,HQL-300-2 dll. |
| Kuantitas min Order: | 1 set |
| Harga: | Dapat dinegosiasikan |
| Kemasan rincian: | Paket yang baik dan kokoh cocok untuk pengiriman laut dan udara |
| Waktu pengiriman: | Negosiasi |
| Syarat-syarat pembayaran: | T/T, Western Union, Paypal |
| Menyediakan kemampuan: | 200 set/M |

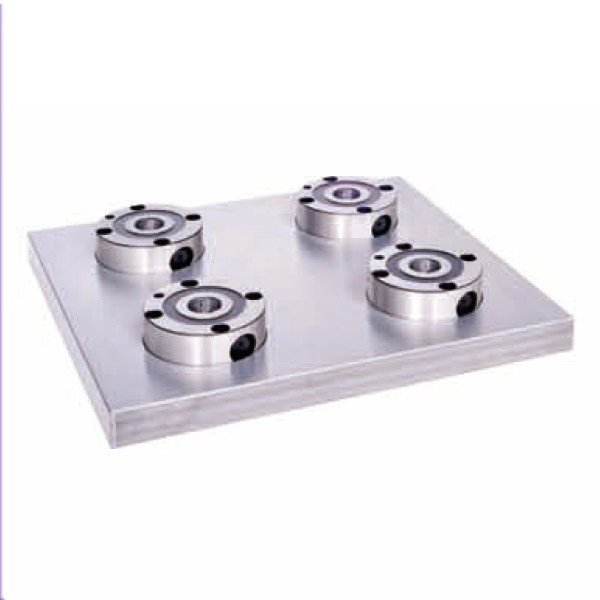

| Nama produk: | JENIS MANUAL SISTEM TITIK NOL | Bahan: | Baja paduan |
|---|---|---|---|
| Pengolahan Panas: | HRC 58-60 | Fitur: | Keakuratan Tinggi |
| Ukuran: | Lihat spesifikasi | ||
| Menyoroti: | Sistem titik nol pengolahan panas,Sistem Titik Nol Presisi Tinggi,Sistem titik nol tipe manual |
||
Merek:NTH
(UNIT: mm)
| Model | A | B | C | D | E | F | G | N.W.KG |
| MQL-225-350 | 200 | 350 | 68 | 35 | 150 | 100 | 100 | 23 |
| MQL-225-400 | 200 | 400 | 68 | 35 | 200 | 100 | 100 | 27 |
| MQL-225-550 | 200 | 550 | 83 | 40 | 270 | 120 | 150 | 42 |
| Model | A | B | C | D | E | N.W.KG |
| HQ-400-MQL | 400 | 350 | 200 | 175 | 63 | 48 |
| HQ-500-MQL | 500 | 450 | 200 | 250 | 78 | 98 |
| Model | A | B | C | D | E | F |
| HQL-300 | 300 | 150 | 50 | 300 | 175 | 100 |
| HQL-400 | 400 | 200 | 50 | 400 | 200 | 150 |
| Model | A | B | C | D | E | F | G |
| HQL-300-2 | 300 | 150 | 50 | 500 | 175 | 100 | 200 |
| HQL-400-2 | 400 | 200 | 50 | 600 | 200 | 150 | 250 |
| Model | A | B | C | D | E |
| MQL-96AT-1-4 | 400 | 230 | 50 | 96 | 245 |
| MQL-52AT-1-4 | 300 | 180 | 50 | 75 | 200 |
| Model | A | B | C | D | E | F |
| MQL-96AT-2-4 | 500 | 250 | 50 | 96 | 192 | 434 |
| MQL-52AT-2-4 | 400 | 210 | 50 | 75 | 150 | 305 |
| Model | A | B | C | D | E | F | N.W |
| MQL-96A | 192 | 156 | 96 | 150 | 100 | 25 | 6 |
| MQL-52A | 150 | 116 | 52 | 100 | 50 | 27 | 3.5 |
